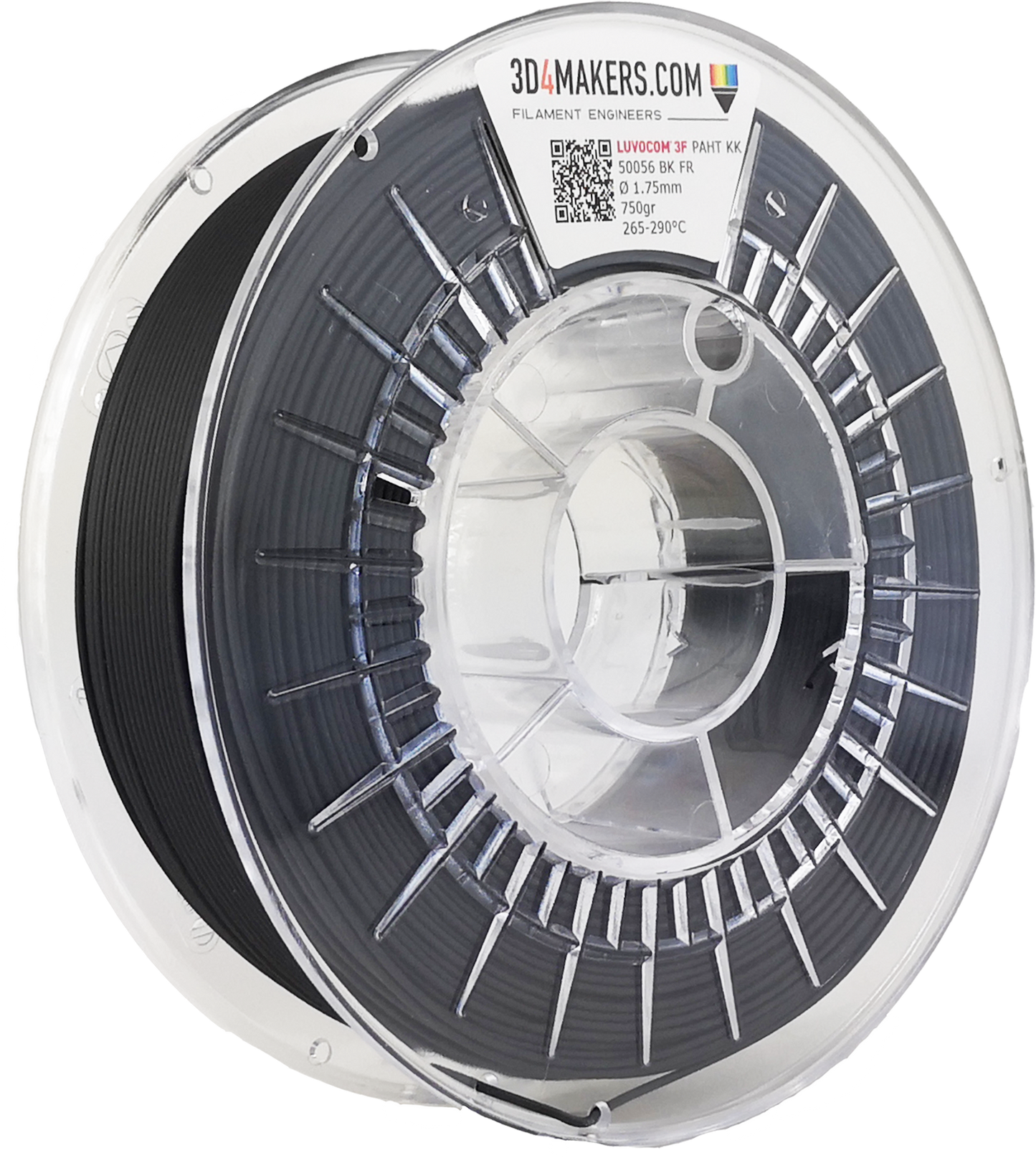

Luvocom® 3F PAHT KK 50056 BK FR Filament
Luvocom® 3F PAHT KK 50056 BK FR is a flame-resistant high-temperature polyamide. Thanks to the reinforcement of halogen-free ceramic balls, you can 3D print flame-resistant parts with a thickness of ≥0.4 mm and achieve the UL-94 V0 rating. This material is optimized for FFF / FDM 3D printing systems and has improved printability and high chemical and mechanical properties. It is based on PA6 material but has lower water absorption and higher temperature resistance. The filament can be used in conventional FFF / FDM 3D printing systems due to improved printability, improved layer adhesion and the absence of a heated chamber. This 3D4Makers PAHT filament has the following features:
High dimensional stability Easy to print, low distortion and increased layer adhesion Flame resistant UL94 V0 @ 0.4mm (printed test piece) UL94 Vertical fire test EN 45545 (fire behavior of train materials) ISO 4589-2 OI (oxygen index) R22 + R23 - HL1, HL2, HL3 ISO 5659-2 Ds (smoke density) R22 + R23 - HL3
Material properties
| Description | Value | Test method |
|---|---|---|
| Density | 1.49 g/cm³ | ISO 1183-3 |
| Tensile strength (23 °C / 50% rh) | 55 MPa | ISO 527 |
| Elongation at maximum force (23 °C / 50% rh) | 1.2% | ISO 527 |
| Modulus of elasticity (23 °C / 50% rh) | 6 GPa | ISO 527 |
| Heat deformation temperature | 90 °C | ISO 75 |
| Continuous operating temperature (20,000 h) | 120 °C | IEC 60216 |
| Service temperature (lifetime max. 200h) | 160 °C | |
| Combustion behavior (V-0) | UL 94 | |
| Insulation resistance strip electrode | >10⁹ | DIN IEC 60167 |
| Surface resistance | >10⁹ | DIN IEC 60093 |
| Water absorption | <0.3% | ISO 62 |
Printer recommendations
| Description | Value |
|---|---|
| Printer nozzle temperature | 265 to 290°C |
| The temperature of the heated substrate | 80 - 90°C |
| Print speed | 40 - 60 mm/s |
| Fixing the base | Magigoo PA for glass or PEI board |
| Pre-drying recommendations | 100°C, 4 hours or 70°C, >5 hours |
| Supporting materials | HIPS and PVOH materials |
| Additional | We recommend using a suitable nozzle (>0.5mm) for filled filaments |
*Print profile available in the Ultimaker Marketplace
For best printing results, we recommend keeping the 3D printer in a room with no draft or temperature fluctuations. When the 3D printer is not in use, it is important to store the filament in a bag and in a cool, dry, dark place until it is used again.
TDS
You can find the technical data sheet for Luvocom® 3F PAHT KK 50056 BK FR filament here.
SDS
You can find the material safety information for Luvocom® 3F PAHT KK 50056 BK FR Filament here.
Certificates
1. Flame resistance test certificate for Luvocom® 3F PAHT KK 50056 BK FR Filament can be found here.
2. Flame resistance test certificate for Luvocom® 3F PAHT KK 50056 BK FR Filament can be found here.
