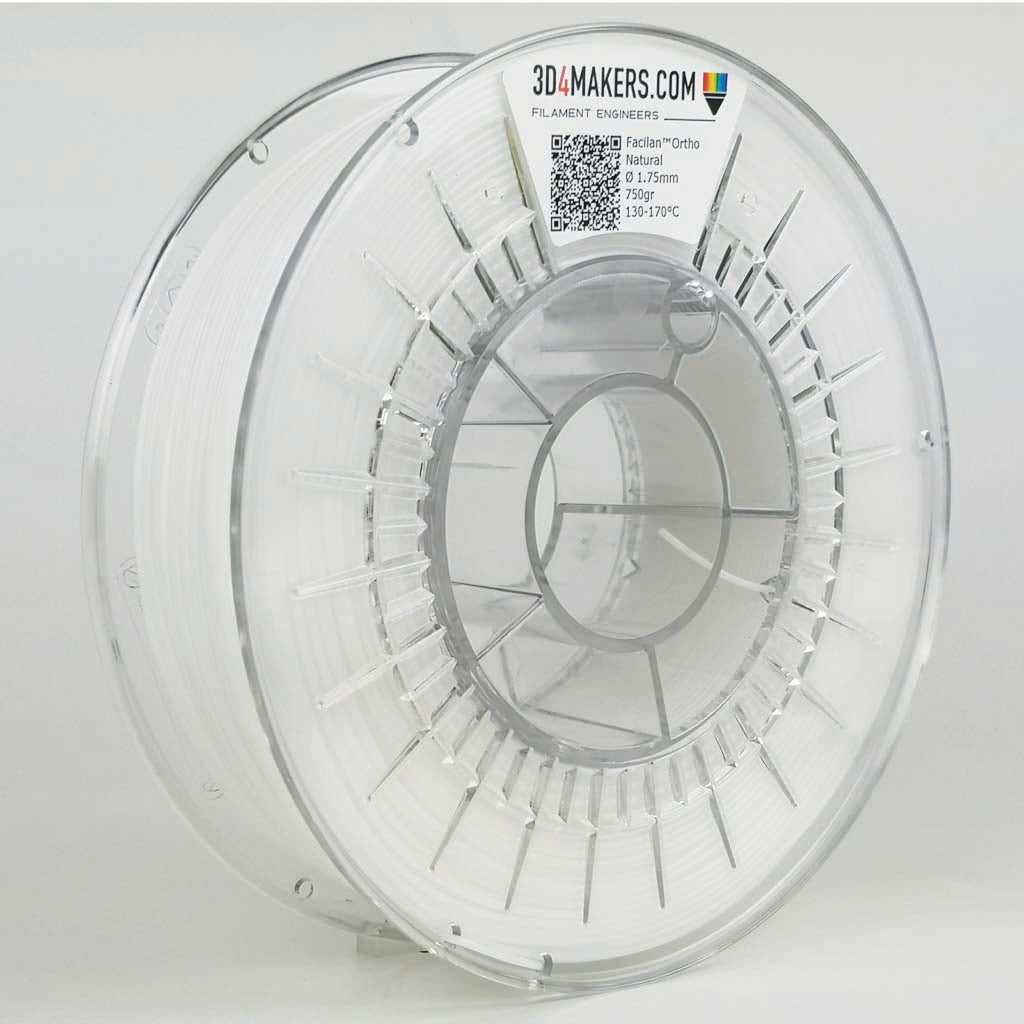

Facilan™ Ortho Filament

Facilan™ Ortho Filament

Facilan™ Ortho is a high-performance 3D printing filament developed specifically for orthotic applications.

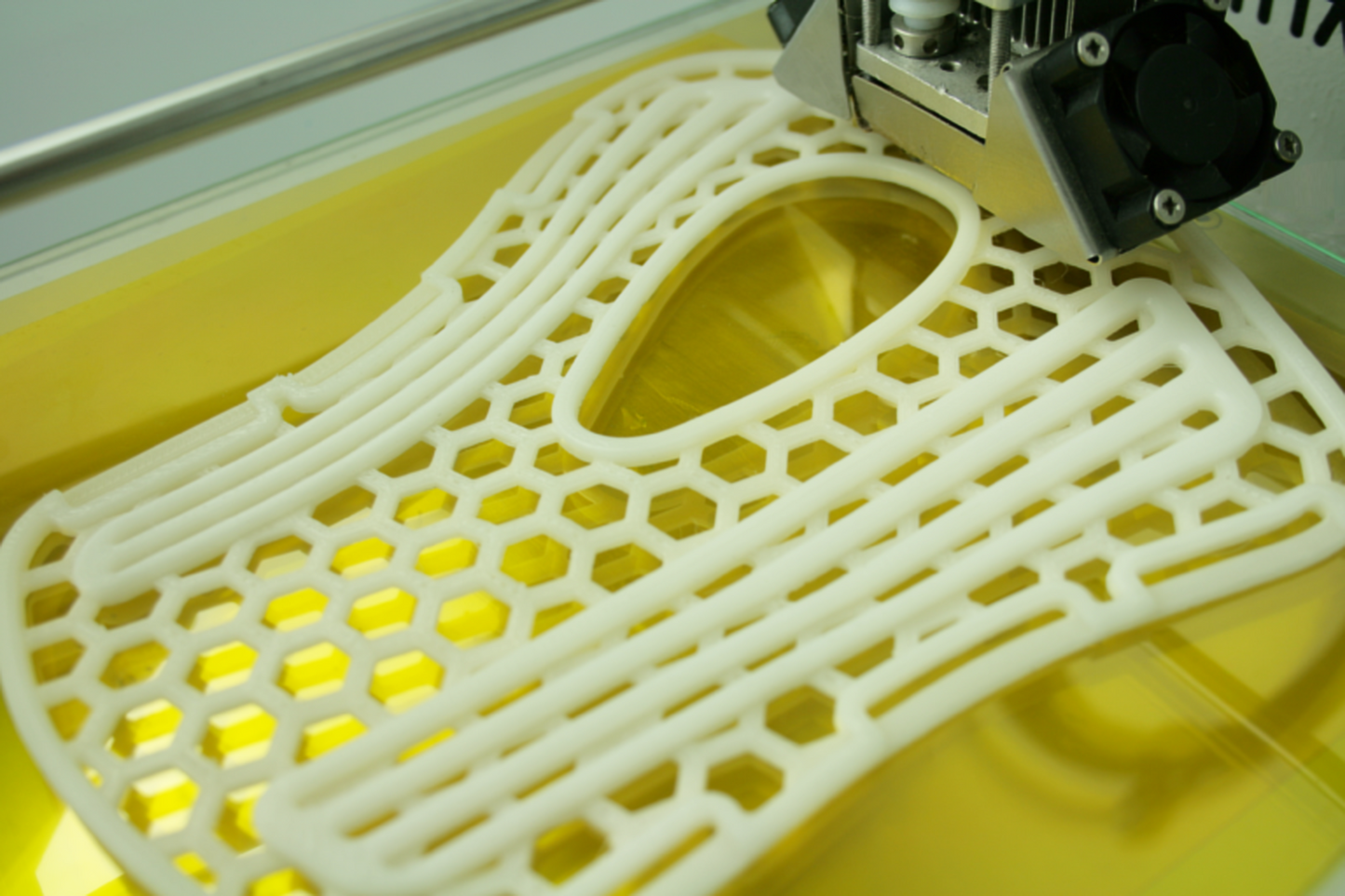

Facilan™ Ortho can also be used in soft supports, corrective supports, shoe soles and other similar applications. We have developed this material together with orthotic manufacturers, orthotic fitters and orthotic wearers to develop the perfect filament for 3D printable orthotics.

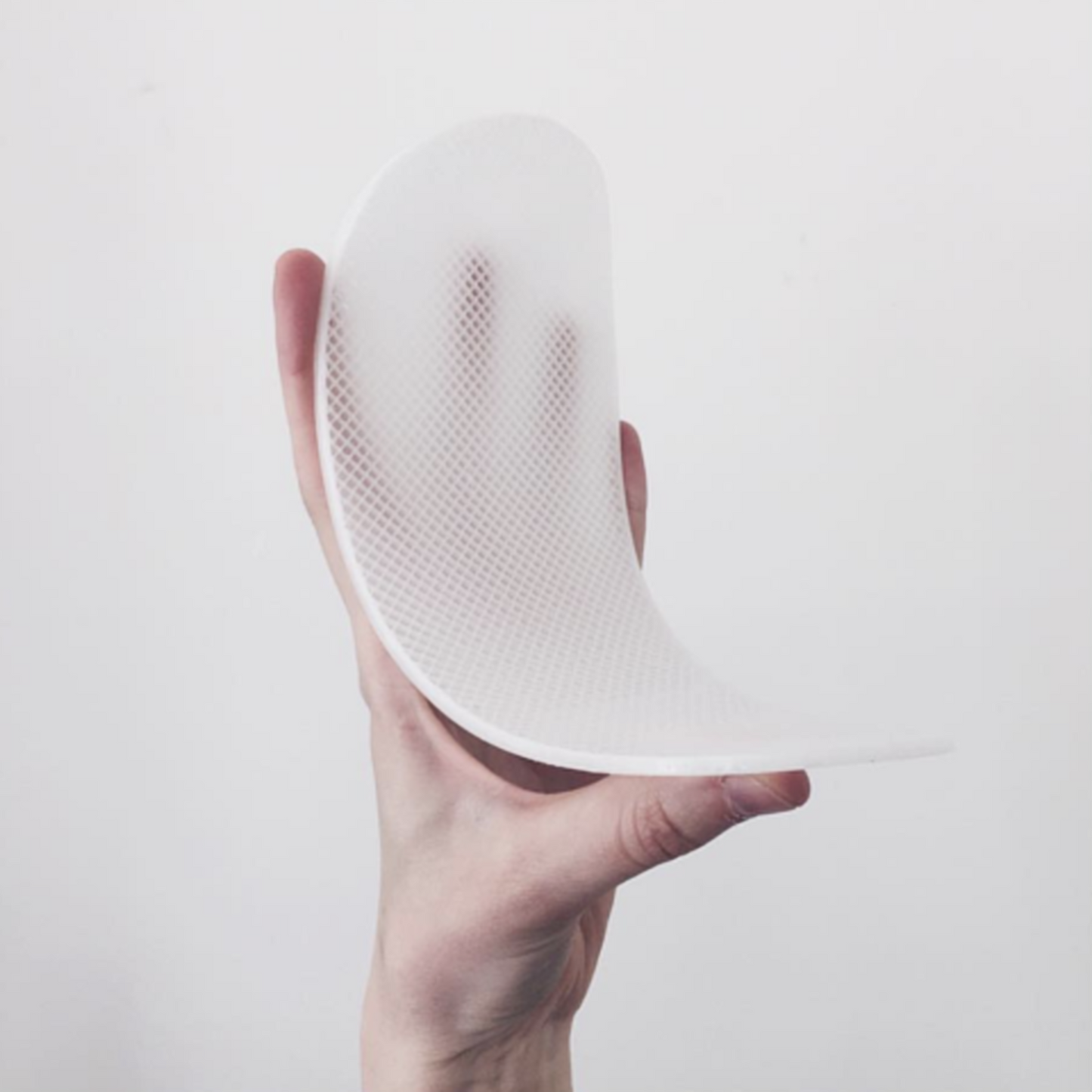

Facilan™ Ortho is a polyester that is partially crystalline and results in a pure white finish. Facilan™ Ortho has a density of approximately 1.2 kg/cm³ and has exceptional mechanical properties. Facilan™ Ortho melts at around 60°C, making it a safe thermoplastic for printing. With a glass transition temperature of -60 °C, the product is very flexible and durable. Facilan™ Ortho is a high-quality biodegradable plastic based on thermoplastic and meets compostability according to EN13432. Facilan™'s unique properties mean it has excellent adhesion to textiles. This means that the 3D printed parts can be easily combined or glued to textile inner parts, midsoles or other support or shoe parts. Due to the low melting point of Facilan™ Ortho, it can be reshaped after 3D printing in 55°C water.

Facilan™ Ortho Material Features

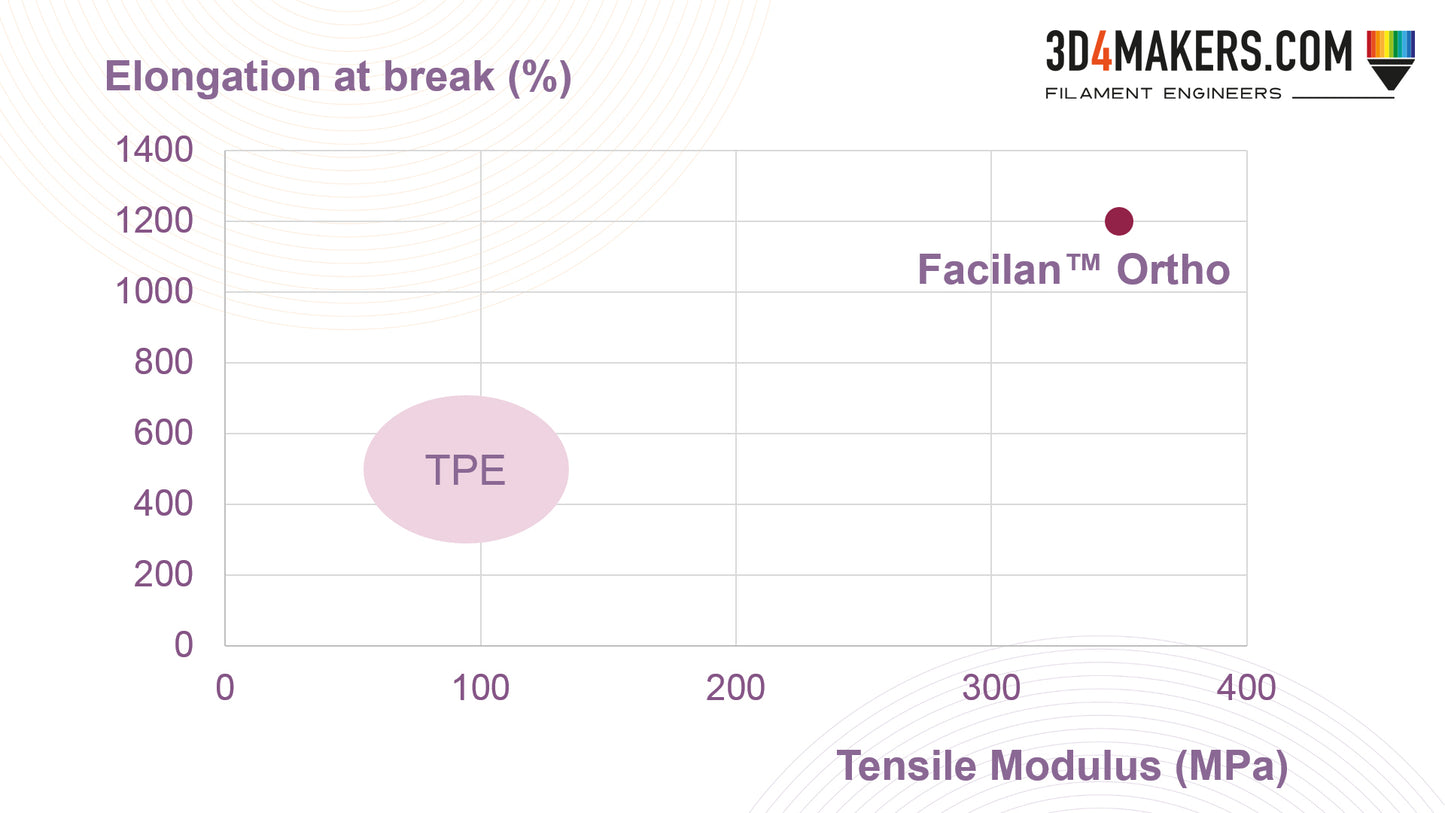

Density: 1.1 g/cm³ Tensile strength: 45 MPa Elongation at yield point: 15 % Tensile modulus: 350 MPa IZOD impact resistance (groove): 8 kJ/m2 Shore D hardness: 46 Thermal deformation temperature (0.45 MPa): 57 °C

Print settings

Printing temperature: 130°C (130 - 170°C) Substrate temperature: 30-45°C Fixing: Ultimaker fixing sheets, Avery Mailing labels L7567-25, PEI sheets Printing speed: 10mm/s (10 - 30 mm/s) Mass flow: 120% Fan speed: 100% Note: Add M302 S120 to the beginning of the g-code to allow Cold Pressing below 170°C. Additional: Minimum layer time significantly +/- 60 seconds minimum, highly dependent on model size and complexity, and activates Lift Head. Support: If PVA or removable support = enabled; Support arc angle = 0°; Start Prime Tower = On. Support Facilan Ortho itself: not recommended.

TDS

You can find the technical data sheet for Facilan™ Ortho filament here.

MSDS

The material safety information for Facilan™ Ortho Filament can be found here.
